Compost Sprayer Questions

Newbie here to organics and the forum. I have been lurking around here for a while reading and learning!! I am wanting to buy or make a CT sprayer for a few small lawns (roughly 6000sq ft). I have a few questions that I seem confused on. This will be about 25 to 40 gallon tank.

1. I know roughly what the psi should be but what GPM should I be looking for?

2. Whatever sprayer I buy or make I am wanting to add a 50ft hose. If it comes with a 15 hose at 60 psi, what will a 50ft hose due to the psi?

3. And as far as pump goes, do you want a pump that runs non-stop or one the will shut off.

4. What size hose for the sprayer? 3/8 or 1/2 ? If you go bigger hose, does the psi increase or drop?

Looking at maybe getting one from Northern Tool but am open to any suggestions or help on this. Thanks alot for the help and look forward to contributing to this forum.
Reply With Quote
  #2
Old 02-02-2011, 06:04 PM
Green Lawn Green Lawn is offline
LawnSite Member

Join Date: Feb 2011
Location: Fort Worth,Texas
Posts: 7
Anybody able to help me?
Reply With Quote
  #3
Old 02-02-2011, 07:05 PM
Compostwerks LLC's Avatar
Compostwerks LLC Compostwerks LLC is offline
Sponsor

Join Date: Aug 2008
Location: Westchester County New York
Posts: 164
Yes, I will. I'm working a show in Boston until Friday and will need to rest up on Saturday...PM me on Sunday and I'll be happy to answer your questions.
__________________
Peter Schmidt
wholesale@compostwerks.com
www.compostwerks.com/
Toll Free (844) 266-9375
Certified Soil Foodweb Advisor
"Products, Service and Support for Ecological Land Care"
Reply With Quote
  #4
Old 02-02-2011, 10:22 PM
Turboguy Turboguy is online now
LawnSite Bronze Member

Join Date: Jun 2003
Location: Beaver Falls PA
Posts: 1,708
Quote:
Originally Posted by Green Lawn View Post
Newbie here to organics and the forum. I have been lurking around here for a while reading and learning!! I am wanting to buy or make a CT sprayer for a few small lawns (roughly 6000sq ft). I have a few questions that I seem confused on. This will be about 25 to 40 gallon tank.

1. I know roughly what the psi should be but what GPM should I be looking for?
As long as your GPM is a little more than your nozzle size it won't make a lot of difference. The answer would depend somewhat on the gun set up you will be using. Probably 5 GPM or more will work.
Quote:

2. Whatever sprayer I buy or make I am wanting to add a 50ft hose. If it comes with a 15 hose at 60 psi, what will a 50ft hose due to the psi?
It won't change it a lot. I have all the formulas for line loss back in my office but like Peter I am up at the New England Grows show fighting off the mass of attendees we had here on opening day. Off the top of my head 10-15% loss.

Quote:


3. And as far as pump goes, do you want a pump that runs non-stop or one the will shut off.
It sounds like you are thinking about a 12 V demand pump. The ones I have seen are diaphragm pumps and if you are only wanting to pump through 65' of hose they should work ok. Much more hose and you won't be happy. That isn't a lot of hose to do someones yard with but if you are only doing front lawns it might be ok.
Quote:

4. What size hose for the sprayer? 3/8 or 1/2 ? If you go bigger hose, does the psi increase or drop?
The half inch hose is the better choice. You will have more pressure loss and more harmful friction with the 3/8" hose.
Quote:

Looking at maybe getting one from Northern Tool but am open to any suggestions or help on this. Thanks alot for the help and look forward to contributing to this forum.
Good luck with your project. You are going to have some limitations but you should be able to put that together pretty cheaply. You can do an internet search for Compost Tea Sprayers and see the way some units are made.
Reply With Quote
  #5
Old 02-03-2011, 12:43 AM
Compostwerks LLC's Avatar
Compostwerks LLC Compostwerks LLC is offline
Sponsor

Join Date: Aug 2008
Location: Westchester County New York
Posts: 164
Green Lawn, one of the best things you can do is choose a sprayer which has a pump which is suitable for the job at hand.

Our experience has taught us that diaphragm pumps are most gentle on the microbes. It's all about what comes out of the gun.

There are other logistical issues such as aeration in the tank(s), accessibility to plumbing for cleaning, fitting configuration, strainer sizing, ability to carry undiluted compost tea with aeration and the ability to blow off chlorine on the road.

I agree with Turboguy in that I wouldn't get too caught up with pressure loss in longer lengths of hose. 1/2" is the way to go. Basically, you want to apply from 5-7 gallons per 1,000 sf of diluted CT.

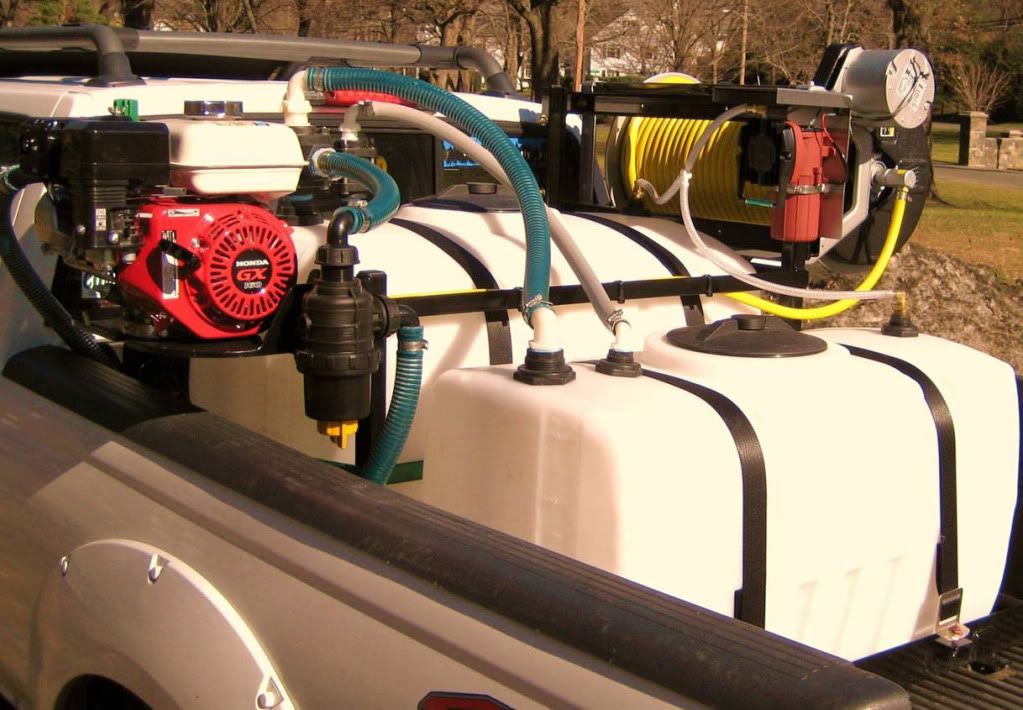

This is a setup that has worked for us for several years;
__________________
Peter Schmidt
wholesale@compostwerks.com
www.compostwerks.com/
Toll Free (844) 266-9375
Certified Soil Foodweb Advisor
"Products, Service and Support for Ecological Land Care"
Reply With Quote
  #6
Old 02-03-2011, 09:52 AM
Turboguy Turboguy is online now
LawnSite Bronze Member

Join Date: Jun 2003
Location: Beaver Falls PA
Posts: 1,708
I was looking at Peter's sprayers yesterday and they are very impressive and would do a great job with compost tea. I do have some differing opinions of pumps and had a discussion with his co-worker on the topic. I have worked in the sprayer field for most of my life and concentrated on equipment that sprays for the past 21 years.

Peter likes the diaphragm pump because of the pulsating action when it pumps and that makes sense. My main concern with that style of pump even though I was part of introducing them to the American market is that while it is pumping it is briefly subjecting the microbes to pressures well beyond an acceptable limit. I think the pressures are brief enough that it is not going to be a big deal and it is a very acceptable pump to use for CT.

My own prefference is for a centrifugal pump since it pumps with almost no contact and under very low pressures.

Personally I think either pump type is acceptable. I would tell anyone to stay a million miles away from a roller pump for CT. I would consider that to be a very unacceptable choice.

Peter does have a great sprayer and would be a good choice for anyone. For anyone going to NEG he has a beautiful booth with some great things to see and I would suggest no one misses it.
Reply With Quote
  #7
Old 02-03-2011, 03:54 PM
Green Lawn Green Lawn is offline
LawnSite Member

Join Date: Feb 2011
Location: Fort Worth,Texas
Posts: 7
Thanks for the replies Gentlemen. I really like the model that Peter has, but just isnt in the budget now. The pumps that I have been looking at 12V diaphram pump.Not sure as far as psi goes though.

I have decided that I will be going with a 1/2" 50 ft hose with prob 35 gallon tank.
If anybody has anything else, fire away. I love suggestions. Peter I will PM you on Sunday.
Reply With Quote
  #8
Old 02-04-2011, 08:08 AM
Compostwerks LLC's Avatar
Compostwerks LLC Compostwerks LLC is offline
Sponsor

Join Date: Aug 2008
Location: Westchester County New York
Posts: 164
OK great Green Lawn, the early AM would work best if possible. My email is below (please use that).

The main reason I'm not a fan of the 12V on demand pumps is lack of agitation. The larger microbes will settle to the bottom of the tank.

Turbo, thanks for your kind words.
__________________
Peter Schmidt
wholesale@compostwerks.com
www.compostwerks.com/
Toll Free (844) 266-9375
Certified Soil Foodweb Advisor
"Products, Service and Support for Ecological Land Care"
Reply With Quote
  #9
Old 02-04-2011, 11:31 AM
Green Lawn Green Lawn is offline
LawnSite Member

Join Date: Feb 2011
Location: Fort Worth,Texas
Posts: 7
Peter, I went ahead and sent you the PM. I knnow you are busy but it will be there when you get time. Thanks Again for your help!!
Reply With Quote
  #10
Old 02-11-2011, 12:10 PM
jonthepain's Avatar
jonthepain jonthepain is offline
LawnSite Senior Member

Join Date: Jul 2010
Location: Raleigh
Posts: 487
Peter, thanks for the photo. That is an awesome setup.

Greenlawn, we started with a 25 gallon tank and a 12V on demand pump, and outgrew that the first week. Total waste of money.

Ended up with a Mitsubishi gas pump and a 275 gallon tote attached to our trailer. Also keep a pond fountain pump in the tote while spraying, as an agitator.

Now I wish I had spent the extra hundred bucks and bought the Honda pump...

Nothing like Peter's setup, but the best we could do on our budget:

__________________
Carolina Organic Lawns
