I just finished (sort of) refurbishing my utility trailer for the second time since purchasing it used in 2010.
I took a lot of pics as I worked, so I thought I would share. Maybe someone will find it useful.

This thread will have two parts - first, a quick batch of photos of how it looked when I bought it, and how I refurbished it the first time, followed by the current refurb showing how I did the work this time around.

It's a basic Carry On brand 5'x8', open mesh floor trailer.
When I initially bought it, there were plywood sides on it, and they were solid, but it looked like crap.
Rather than tearing it all off and starting from scratch, my solution was to repaint the bottom and trailer metal black, then "re-skin" the ugly, black vinyl-wrapped wood by bolting some thinner plywood over it.

Here it is in 2010

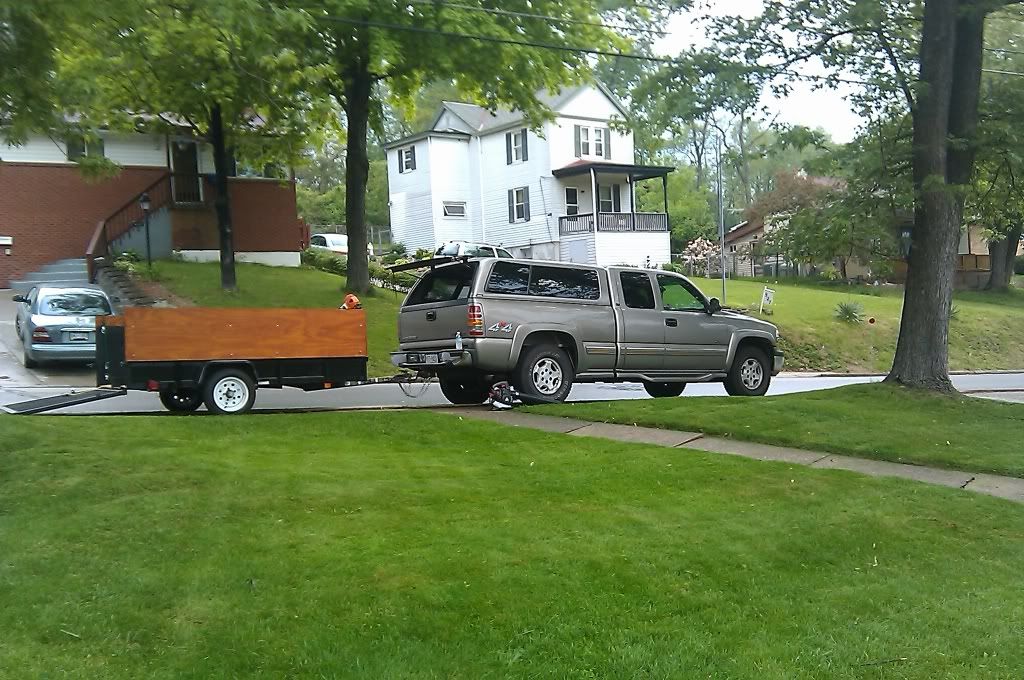

The previous owner used it to haul firewood. He added the plywood and wrapped it with black vinyl. Between that and the surface rust it was looking pretty rough. Something had to be done about that.





I ran a wire wheel over the rust, just knocking off the loose stuff, then I primed the metal, and painted the frame and lower outside wood black (and I painted the inside with flat black)...





As I mentioned, it LOOKED like crap, but the sides were solid. It looked cheesy the way he used 2 pieces of plywood on each side, so I bought some thinner plywood, stained it with leftover deck stain/sealer, and bolted it on over the existing wood. I used eye bolts along the bottom to give me tie down points if needed. (yes, I cut off the excess length on the bolts)



It sure looked a lot better than it did when I dragged that sorry thing home!









I added a sheet of plywood over the wire mesh floor because the mesh was sagging a bit in the front.
I've been using this trailer ever since, only adding a new coat of stain, and a new sheet of plywood once. (and new, radial tires)

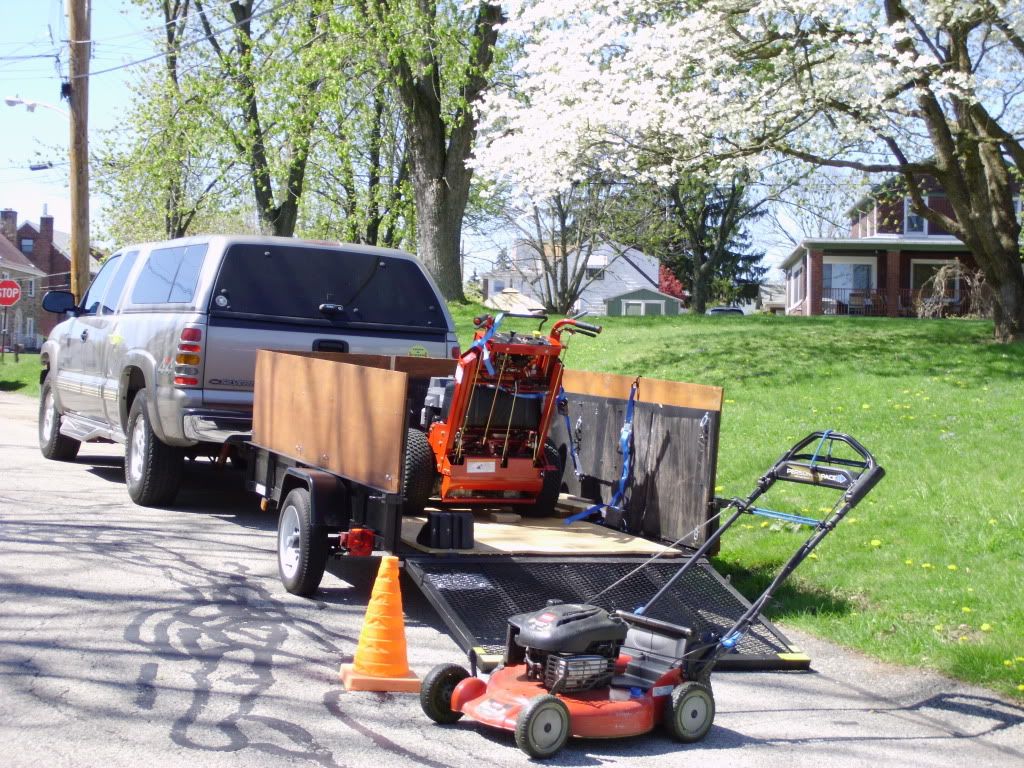

Pics from the early days...





Up next - embarrassing photos of how it looked this spring and the process of tearing it down and building it back up again!


·
Registered
Joined
·
6,537 Posts
Discussion Starter · #3 ·
CURRENT 2021 trailer refurbish!

It started looking bad a few years ago, and I really wanted to refurbish it last year, but without much income (severe drought), I had to hold off, so I worked with what I had, as it deteriorated further.

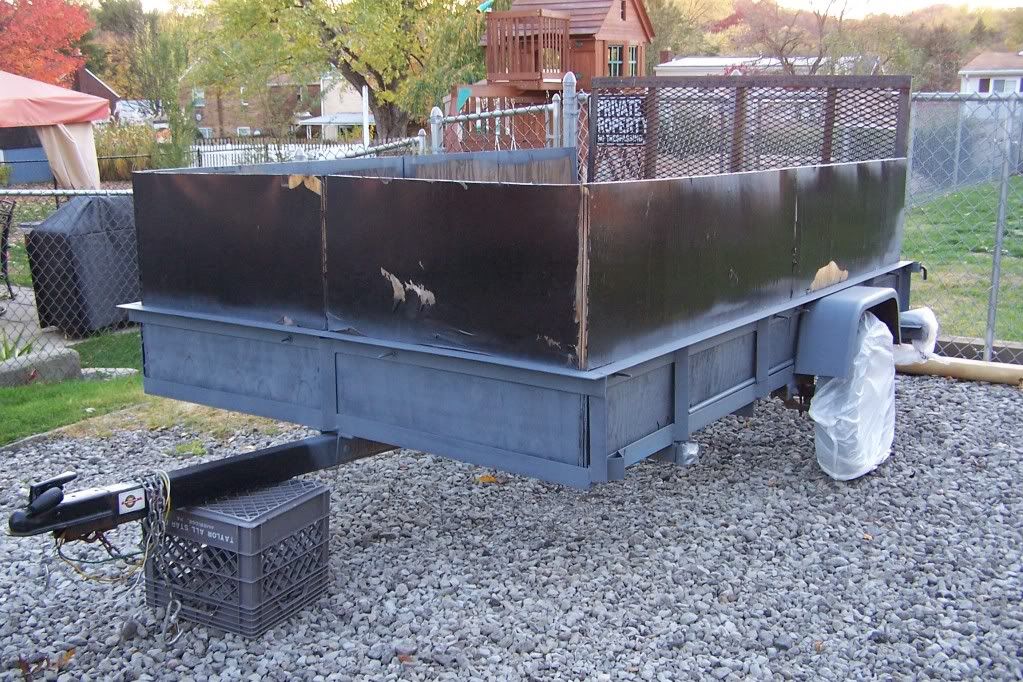

Taken this spring. Ugh. I'm so embarrassed.





Just throwing this in to show how high each of the pieces of plywood were on the original/refurb. (measured from the floor of the trailer)



And the demolition begins...

Pulling off the outer "skins" was easy because I used stainless and galvanized hardware. (the lower portion - the stuff the prior owner installed - did not come off so easily)

Note that there were only TWO 1/4" bolts through the top angle iron on EACH of the six "black" pieces of plywood - that's it. And it was sturdy. That really surprised me.



I had to cut off several of the older bolts that had nuts rusted on. They were carriage bolts, so nothing on the inside to put a wrench on, to try and break the nut free. Minor setback.



Uh-oh. Larger setback. I found a partial crack in a weld on the top rail while I was taking a wire wheel to the rust. I don't have a welder, so I had to start asking around, and found a friend who fixed it for me.





Up next - the painting begins!


·
Registered
Joined
·
6,537 Posts
Discussion Starter · #4 ·
General condition of the metal overall - surface rust that just needed a quick wire wheel run over it.



Black primer applied.
Lots of dings from road debris on the front sides of the fenders, and lots of loose paint and surface rust. I wasn't about to spend a bunch of time taking it down to bare metal to get it perfect - it's a utility trailer, not a sports car.



All painted.
I did everything with gloss black with the exception of the top rail surface and the fenders...



The fenders and top rail were done with "hammered black". I wanted to try and see if it would help hide some of the imperfections underneath.
It did pretty well - the "color" isn't quite BLACK - more like a very deep, dark grey-black. Not sure I'd bother using it again, but it looks nice enough.





UP NEXT - The WOOD!!!


·
Registered
Joined
·
6,537 Posts
Discussion Starter · #5 ·
Off to Home Depot to look for plywood!



They didn't have what I wanted, and looking at the covid-inspired price of lumber was making me want to puke, so I headed off to check Lowes...

Prices were just as disgusting, but they had what I wanted - something "roughly 3/4" and sanded.

Side note: I WAS going to redo this the same as it was originally - using rough (cheaper) plywood for the bottom and adding a thinner "skin" over the upper portion like I did the first time.
The PRICE of PLYWOOD is INSANE. I would need FOUR SHEETS - FIVE if I wanted to replace the flooring. At between $50 and $68 PER SHEET, I just don't have the money right now, before the season starts. (have to also factor in price for hardware, paint, and stain plus I want to get trimmer racks)
I revised my plan to only add the "lower" plywood for now - possibly adding the rest later. But just in case I decide I want to keep it this way, I paid the premium for sanded plywood. OK, enough rambling... ;)



In case you can't read that price... :puke:



I had them do the cuts for me while I was there. No sense trying to make those cuts with a circular saw when they will cut them in the store for you.

SOME QUICK INFO on LUMBER USED:

- 23/32" sanded plywood (3/4" actual thickness) - Two 4x8 sheets purchased
- One sheet ripped down the center making 2' tall x 8' long sides.
- Second sheet ripped down the center. One half used to cut two 2' tall x 29" long pieces for the front wall.
- Bolted on with 1/4"x2 5/8" Eye bolts along the top rail. (bolting into bottom is unnecessary, but I will be doing the far corners)

- One 4'x8' sheet of 3/8" plywood (existing wood - still in fair cond) covers the floor with 5 bolts/washers/lock washers through the mesh along the ramp end (to keep it flat) and one on each front corner. (about 6" of mesh is exposed along each side - if you want the floor covered completely, you need 2 sheets cut)

Note: I don't suggest going with anything thinner for the walls.
Thinner plywood is more prone to warping and if you want to screw in any D rings (to secure light objects, NOT mowers), you will need some thickness to screw into - unless you want to drill all the way through and use nuts/bolts.

OK, home with the cut plywood. Test fit everything to make sure it fits before you continue.



Hmmm... those wiring conduits are sort of in the way.
I'll talk more about that during the "assembly" portion...





UP NEXT - STAIN and BED LINER! (wait. WHAT? Yeah, bed liner)


·
Registered
Joined
·
6,537 Posts
Discussion Starter · #6 ·
BAM!
TWELVE BUCKS at Ollies!

Not the color I wanted, but beggars cant be choosers.





It took roughly 1/2 gallon of stain to do both sides of the plywood.
I wood have (Get it? "wood"? HA!) preferred a semi-transparent stain, but for the price, I'm not complaining.



Now for a quick explanation for why I did what I'm about to do.
As you recall, on the original trailer, I spray painted the trailer frame AND the wood below the top rail in black. I figured that if I should decide to repaint the black frame again, I don't have to screw around masking off the wood in the spaces between the trailer rails - just shoot it all black.

I planned to paint the inside of the trailer sides with bed liner to help give it additional protection, BUT costs were creeping up, and that stuff is $50 a gallon and I had no way of knowing if one gallon would cover it all, SO... I just bought a few aerosol cans of Rustoleum truck bed liner to spray on the OUTSIDE, lower portion of the plywood.





It doesn't go as far as I had expected and it's more like black spray paint with a minor texture to it, so not quite what I wanted, but it came out looking good.
(I tested it on the back/inside of the two front sections first to be sure it would adhere to the stained wood - it did.
Note: It took 2 1/2 cans to spray what you see here. I put on several coats.

Looks good to me.







Getting ready to assemble!





UP NEXT - ASSEMBLY of PLYWOOD!


·
Registered
Joined
·
6,537 Posts
Discussion Starter · #7 ·

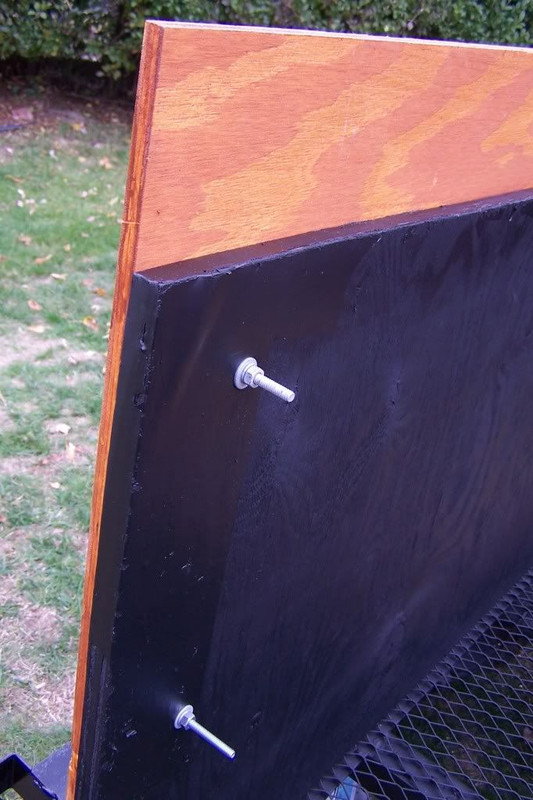

Most of the hardware used. The 2" eye bolts ended up being a hair too short and I had to go get 2 5/8" eye bolts. Even though I was trying to save money, I splurged on stainless. I hate rusted bolts.
(I mostly did not use the galvanized carriage bolts)



Test fitting the eye bolts. I mostly used the existing holes, but some of them were in weird places, so I did drill a few in better places.



Positioning the side to drill holes...



Remember THAT?



Yeah, they keep the bottom of the plywood from laying flush against the bottom frame rail, pushing it in about a quarter of an inch.





I debated "notching out" the plywood to fit it over the conduit, but I thought "Hey, this is how the plywood was on here before - no sense trying to reinvent the wheel - just bolt it on, and deal with it."
It kicks the wall out an a very slight angle, but it's not really noticeable.

Anyway, I didn't sweat the gap. I just went ahead and threw 4 bolts along the top rail on each side. (and 2 each on the two front panels)
I DID add a bolt to the bottom at the front corners and will add one on each bottom corner once I get a few more bolts - it's not necessary, as the sides are rock solid with just the bolts along the top rail, but I want to snug it up just a bit more.

Too short!



I thought I had measured correctly, but I guess not. Off to get longer bolts...





UP NEXT - FINISHED TRAILER!!! (I bet you thought this would NEVER end!)


·
Registered
Joined
·
6,537 Posts
Discussion Starter · #9 ·
FINISHED (for now) TRAILER!



Everything lined up pretty well considering the way these cheap trailers flex and the way the sides aren't perfectly straight - only that slight gap in the front corner - and that wasn't that bad until I added a bolt to the bottom and snugged it down, pulling the plywood closer to the bottom rail.



My measurements for the two front panels were accurate.
The original wood had a much larger gap, but I made it a little closer.
I had considered cutting one piece for the front, but I wasn't really sure if it would cause any issues when the trailer flexes. It probably would be fine, but I figured if it worked OK before, I'll just do it the same way again.



I've seen some Youtube videos where guys build up all sorts of crazy 2x4 framing to make it "sturdy", but I'm telling you, this is rock solid the way it is. Why take up space inside an already small trailer with lumber that isn't needed, and just adds weight.

Mower test fit - prepping for the season...





It looks almost the same as the first time I refurbished it, but the walls are several inches shorter now, and it consists of just one layer of plywood. Time will tell if I decide to make them higher again.

I would have liked to have replaced the plywood on the floor too, but it has some life left in it. No sense blowing more money just to make it look pretty - it's a floor. (the dark "oil stain" is a reminder of a bad seal on one of my hydros on the 36" a few years ago.)

I have a few more things to post, but that's it for now.
Thanks for reading and hopefully it helps inspire someone to put some of their own ideas to work.
This certainly isn't the only way to add sides to a trailer, but it has to be one of the simplest ways.


·
Registered
Joined
·
6,537 Posts
Discussion Starter · #10 ·
A note about the mesh floors:
In another thread, the question was asked: "Will it hold up" without covering it with some type of wood?"
I say "no". I left the side edges exposed, rather than spending extra money to completely cover the mesh with plywood. I don't use the trailer to haul bulk mulch, but I did get topsoil once, and all I did was lay a tarp to prevent it from falling through. (the mesh strips also come in handy for sweeping clippings out)

The mesh is pushed down/sagging and broken on both sides at the end where the rear wheel of each push mower sits. All that bouncing around on bad roads takes it's toll. It's also not that great for your mower to be sitting "tilted" a little bit with the outside wheels slightly lower than those sitting on the plywood.



(this is the good side)


My quick and dirty solution was to zip tie some lengths of scrap hardwood baseboard I had laying around. It's strong enough to support the wheels over the broken mesh, and if I DO need to replace them, it's easy to do.

Note the U bolt I added to run a ratchet strap, or bungee cord over the front of the 21" mower deck to a D ring on the floor to keep the mower from bouncing/moving. (I taped the ends of the bungees to keep them from slipping off, so I don't have to reach down there to hook them back on every time)





·
Registered
Joined
·
6,537 Posts
Discussion Starter · #11 ·
My 36" walk behind (not shown) goes to the front of the trailer, off to the passenger side, allowing room for a trash can to sit in the front driver side corner, with some room left for gas cans and such along that wall. For the walk behind, I have a block of wood on the floor (I need to replace it - you can see where it should be) along the side of a back tire to keep it from shifting to the side after adding ratchet straps to eye bolts through the trailer frame.

For the two "push mowers", I put down wood "stops" to keep them from moving forward and hitting the walk behind.



After loading the push mowers, I place a rubber wheel chock behind each wheel, then close the gate, which presses against the wheel chocks, securing the mowers from moving around forward and backward. ( I measured for the wheel stop wood placement by closing the gate against the rubber chocks, pushing the mowers back against then, and then marking where the wood in front of the front wheels needs to be)
I wasn't planning to "explain" this, so it's not shown here, but I then lay a scrap piece of landscaping timber on the floor between the two mower decks, which keeps the mowers from moving side to side. The mowers sort of keep each other from moving that way.





·
Registered
Joined
·
14,271 Posts
Looks really good! Question for you.... Why do you have the sides so tall? The floors not stained so I’m guessing you don’t do mulch. I generally prefer easy access for my mowing trailer


·
Registered
Joined
·
6,537 Posts
Discussion Starter · #13 ·
Looks really good! Question for you.... Why do you have the sides so tall? The floors not stained so I'm guessing you don't do mulch. I generally prefer easy access for my mowing trailer
There's nothing I need to "access" other than a gas can, and even with the original, higher sides than it has now, reaching over while standing outside was not an issue - and I'm short.
If I wanted to climb in, I stand on the fender and swing my leg over. The original height was a bit of a nut buster for me, so that was the only downside to the height.

Taller sides allow for a larger load of leaves and brush.
These small trailers fill up quick.

The only thing I haul are the mowers and brush from cleanups/hedge work.

Oh, and the sides NOW are not tall at all.
2 feet - that's it.
Not sure if I'll keep them that low - gonna reduce how much I can haul off. Extra trips to the dump...


·
Registered
Joined
·
6,537 Posts
Discussion Starter · #14 ·
Oh! I snapped this pic to use as an example. I always mention how much I love that the Toro Super Recycler handles flip straight up and because of that, I can roll it in right behind my walk behind, flip up the handle, and close the gate.
(same with the Timemaster 30")
If not for that foldy-feature, I wouldn't be able to fit all 3 mowers on this 8' trailer. At least not in a way that doesn't make it a pain to load/unload all day.





·
Registered
Joined
·
6,537 Posts
Discussion Starter · #15 ·
Sometimes it's the simple things that make life easier.

Ever try to hook something to a D ring with one hand and it's a struggle because the D ring is laying flat against the wood, keeping you from hooking onto it?

I made a spacer that holds the ring out just a hair to make it easy to hook onto.



Does this plastic thing look familiar to anyone?



LOL! I'm recycling/repurposing!
I have a bucket of those stupid stakes that the fert guys stick in the lawn.
Snipped a bit off the outer ring, drilled a hole, and used it to prop up the D ring.



Works great. I don't need it on all D rings, but this one sees use all the time once I unhook the mower (just a place to hold the bungee until I need to strap down the mower again), and I just made my life a little bit easier.



·
Registered
Joined
·
6,537 Posts
Discussion Starter · #16 · (Edited)


I need to order trimmer racks once I collect a few more payments.
That should make for some interesting DIY content because I want to mount them on the outside and will likely need to fabricate/weld brackets to do it.

Also need to replace the 3 1/4" drop ball mount - probably need a 5 1/4".
The receiver on the Silverado was lower than it is on this TrailBlazer.

Not visible, but I did add mounts to secure my rakes to the side (inside passenger side) of the trailer wall.
I see guys with tool racks, but I have no need for shovels and brooms, and all sorts of tools that I rarely use. All I ever need is a leaf rake and a small, shrubber rake.
It would look dorky as heck with a single rake mounted vertically, sticking up in the air - I chose to keep it out of sight instead.

Another trailer mod I will be doing is a tongue-mounted box.
The need for me to be able to stand between the trailer and the SUV in order to open the back has complicated the issue more than I thought it would.
Most tongue boxes stick out too far forward for me to EASILY get stuff (backpack blower mainly) in and out all day long.
I need to use something long and narrow, and finding something that will work has been a challenge. I'm likely going to use a 28" long toolbox.
Stay tuned!


·
Registered
Joined
·
6,537 Posts
Discussion Starter · #17 ·
So far, just the rakes mounted to the side.
Keeps them handy, but out of the way. Gotta get creative since I don't have a truck bed to put this stuff in now.



I wanted to test two methods of attaching the rake - a "grippy clip" and a D ring with a velcro strap. Not sure if the grey, rubbery clip will hold up long term, and I figured the D ring could be used for other things if I change my mind.





·
Registered
Joined
·
6,537 Posts
Discussion Starter · #18 ·
More creative, practical solutions. (ha!)

I've never needed a trimmer rack before because all my stuff used to live in the bed of my truck.
Now that I have an SUV, I need a trimmer rack on my trailer because the string trimmer will only fit in the back of the SUV diagonally, and just wastes a LOT of space.

Until I get my trimmer rack, I'm just laying the trimmer on the floor of the trailer.
I was trying to think of a way of securing it - just keeping it from rolling around, banging into things. Hmmm... how about a cat litter bucket???
The powerhead of my FS90R fits perfectly inside! With it inserted in the bucket laying on it's wide side, the trimmer stays upright!
With it positioned this way, with the trimmer head in the corner, and the bucket resting against the wheel stop for the mower, it stays right where I put it!

Laugh away, but it works! :p



This isn't going to work once I get my 36" Ferris back on the trailer, (it needs some repairs), but for now, it does all I need it to do - keeps my trimmer from getting damaged.
